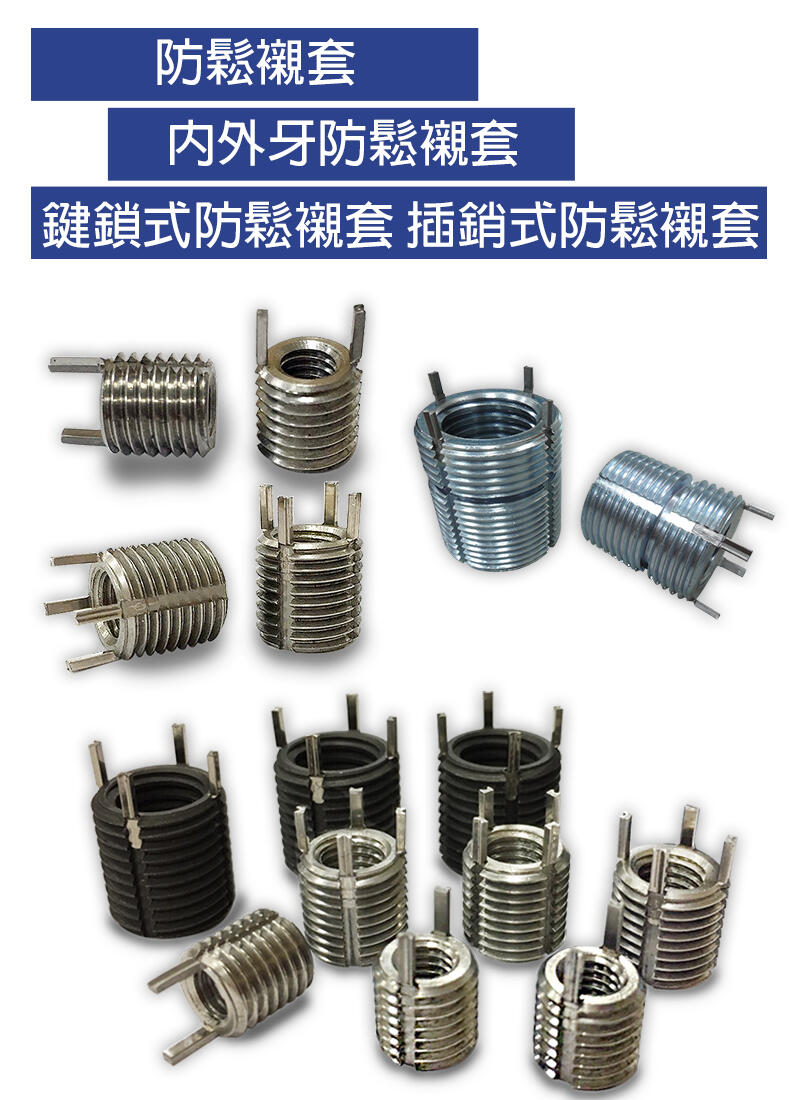

內外牙防鬆襯套
Self locking Key Locking Thread Inserts
具有特殊的內螺紋,可將螺釘鎖定到位,而pin則可插入物件以防止滑動和旋轉。
這種鎖定,比粘合劑和化學鎖定更堅固。
材質:鐵、白鐵、合金鋼

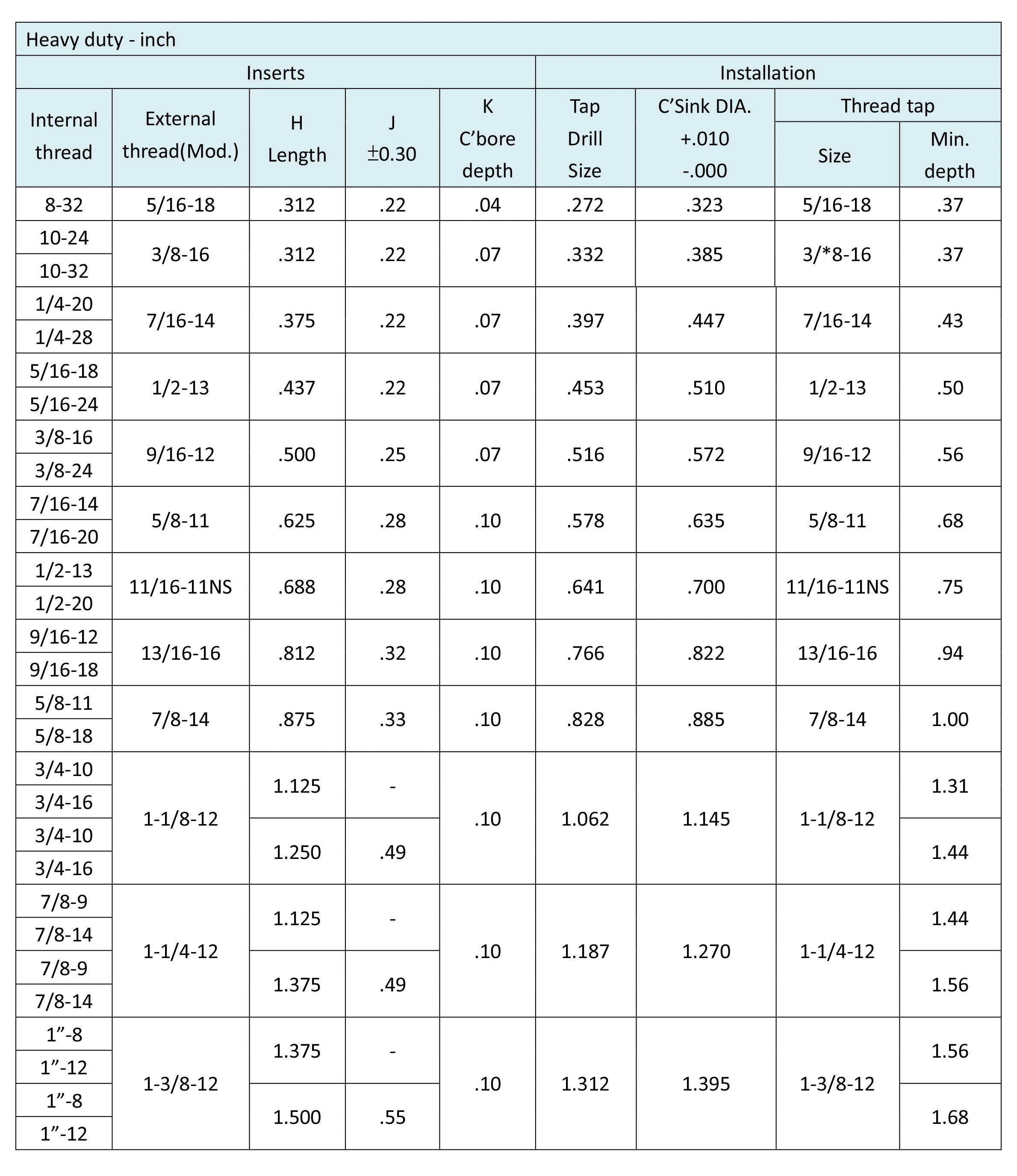

Heavy duty - inch
螺峯金屬工業公司成立多年來,不斷創新研發符合產業界產品,新推出「防鬆襯套、鍵鎖式螺紋襯套、插銷式防鬆襯套」,適用在電動及汽、機車鋁合金材質引擎的防震動鬆脫保護,特別是機械業、航太工業及火箭發射高精密設備的防震動保護,讓產品主體更加強防震保護。
防鬆襯套以標準鑽尾孔,再以(82~100度)沙拉頭鑽尾製做倒角,使用攻牙絲攻牙完成,將襯套轉入內孔大約0.25~0.70mm以下深度後,再將插卡入組裝工具定位銷孔,再繼續轉到底。移出定位插銷孔後,將安裝工具旋轉45度安置在插銷上面後再使用鐵槌敲入直到四支插銷與表面平整,就組裝完成。
防鬆襯套功能與優點:含固定銷的襯套以物理性固定方式防止轉動,高強度和穩定性提供強大的拉力,只需要標準鑽頭和攻牙絲即可安裝,安裝便利不需任何特別的技巧,可用於多材質的母材上面,安裝時不會有錯牙的情況,可以移除,沒有縫隙可以被輕易破壞和拆除,適用於美規,歐規和火星塞的尺寸,有薄壁和後壁兩種款式,材質有鐵與白鐵等特性。該公司擁有20項及50張專利證書,並通過ISO9001:2015國際品保認證,產品行銷全球80餘國家。
在極端震動與高動態負荷的工業環境中,螺紋鬆脫往往是設備故障的元兇。
螺峯金屬憑藉領先的緊固技術,推出的內外牙防鬆襯套 (Self-Locking Key Locking Threaded Inserts),為您提供超越傳統螺紋的終極穩定性。
1. 物理式抗震原理:雙重鎖定機制 (Mechanical Locking Principle)
我們的自鎖式襯套不依賴化學膠水,而是採用純物理的機械鎖定:
外部鍵鎖定 (External Keys): 襯套外圍帶有獨特的「插銷 (Keys)」。安裝後,透過打入這些插銷,使其穿透母材螺紋,形成強大的物理抗震,從根源上防止襯套旋轉或鬆脫。
內部自鎖螺紋 (Internal Self-Locking): 內部具備特殊的變形螺紋設計,當螺栓旋入時,內螺紋會咬緊鎖入的螺絲,確保螺栓在強烈震動下依然牢牢鎖死在預定位置。
2. 適合使用情境與產業 (Applications & Industries)
凡是涉及高頻震動、熱脹冷縮的環境,皆是本產品的最佳舞台:
航太與國防: 飛機引擎、機身結構等極端壓力環境。
汽車工業: 引擎組件、傳動系統及改裝車零件。
重型機械: 礦山設備、建築機械等高衝擊力場合。
電子與能源: 風力發電渦輪、軌道交通訊號設備。
3. 產品比較:自鎖式 vs. 標準型防鬆襯套
雖然兩者皆具備外部插銷鎖定功能,但在功能定位上有所區別:
| 特性 | 內外牙防鬆襯套 (Self-Locking) | 標準型防鬆襯套 (Key-Locking) |
| 內部防鬆 | 有(內部螺紋具備自鎖功能) | 無(主要靠外部插銷固定襯套本身) |
| 抗震強度 | 極高,螺栓與襯套皆不鬆脫 | 高,防止襯套跟著螺栓轉動 |
| 適用情境 | 需額外防鬆安全,且不便使用墊圈者 | 一般損壞螺紋修復與強度增強 |
內外牙防鬆襯套
Self locking Key Locking Thread Inserts
Heavy duty - inch
| insert | ||||

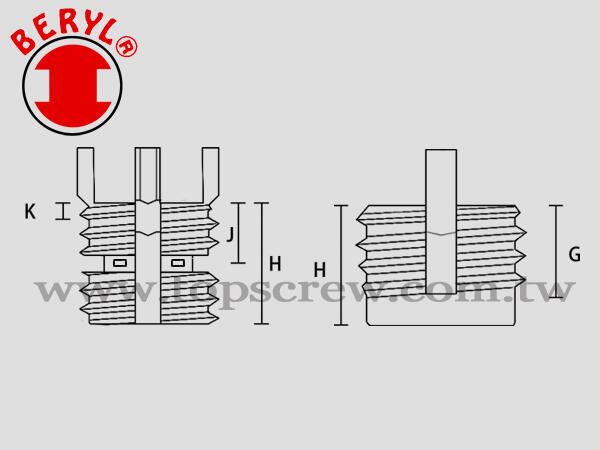

| Internal thread | External thread (Mod.) | H Length | J ±0.30 | K |
|---|---|---|---|---|
| 8-32 | 5/16-18 | .312 | .22 | .04 |
| 10-24 | 3/8-16 | .312 | .22 | .07 |
| 10-32 | ||||
| 1/4-20 | 7/16-14 | .375 | .22 | .07 |
| 1/4-28 | ||||
| 5/16-18 | 1/2-13 | .437 | .22 | .07 |
| 5/16-24 | ||||
| 3/8-16 | 9/16-12 | .500 | .25 | .07 |
| 3/8-24 | ||||
| 7/16-14 | 5/8-11 | .625 | .28 | .10 |
| 7/16-20 | ||||
| 1/2-13 | 11/16-11NS | .688 | .28 | .10 |
| 1/2-20 | ||||
| 9/16-12 | 13/16-16 | .812 | .32 | .10 |
| 9/16-18 | ||||
| 5/8-11 | 7/8-14 | .875 | .33 | .10 |
| 5/8-18 | ||||
| 3/4-10 | 1-1/8-12 | 1.125 | - | .10 |
| 3/4-16 | ||||
| 3/4-10 | 1.250 | .49 | ||
| 3/4-16 | ||||
| 7/8-9 | 1-1/4-12 | 1.125 | - | .10 |
| 7/8-14 | ||||
| 7/8-9 | 1.375 | .49 | ||
| 7/8-14 | ||||
| 1"-8 | 1-3/8-12 | 1.375 | - | .10 |
| 1"-12 | ||||
| 1"-8 | 1.500 | .55 | ||
| 1"-12 | ||||
| Installation | ||||
|---|---|---|---|---|
| Internal thread | Tap Drill Size | C'Sink DIA. | Thread tap | |
| Size | Min. depth | |||
| 8-32 | .272 | .323 | 5/16-18 | .37 |
| 10-24 | .332 | .385 | 3/8-16 | .37 |
| 10-32 | ||||
| 1/4-20 | .397 | .447 | 7/16-14 | .43 |
| 1/4-28 | ||||
| 5/16-18 | .453 | .510 | 1/2-13 | .50 |
| 5/16-24 | ||||
| 3/8-16 | .516 | .572 | 9/16-12 | .56 |
| 3/8-24 | ||||
| 7/16-14 | .578 | .635 | 5/8-11 | .68 |
| 7/16-20 | ||||
| 1/2-13 | .641 | .700 | 11/16-11NS | .75 |
| 1/2-20 | ||||
| 9/16-12 | .766 | .822 | 13/16-16 | .94 |
| 9/16-18 | ||||
| 5/8-11 | .828 | .885 | 7/8-14 | 1.00 |
| 5/8-18 | ||||
| 3/4-10 | 1.062 | 1.145 | 1-1/8-12 | 1.31 |
| 3/4-16 | ||||
| 3/4-10 | 1.44 | |||
| 3/4-16 | ||||
| 7/8-9 | 1.187 | 1.270 | 1-1/4-12 | 1.44 |
| 7/8-14 | ||||
| 7/8-9 | 1.56 | |||
| 7/8-14 | ||||
| 1"-8 | 1.312 | 1.395 | 1-3/8-12 | 1.56 |
| 1"-12 | ||||
| 1"-8 | 1.68 | |||
| 1"-12 | ||||
| Extra heavy duty - inch | ||||
|---|---|---|---|---|
| Inserts | ||||
| Internal thread | External thread (Mod.) | H Length | J ±0.30 | K C’bore depth |
| 10-24 | 7/16-14 | .312 | .22 | .07 |
| 10-32 | 7/16-14 | .312 | .22 | .07 |
| 1/4-20 | 1/2-13 | .375 | .22 | .07 |
| 1/4/28 | 1/2-13 | .375 | .22 | .07 |
| 5/16-18 | 9/16-12 | .437 | .22 | .07 |
| 5/16-24 | 9/16-12 | .437 | .22 | .07 |
| 3/8-16 | 5/8-11 | .500 | .25 | .07 |
| 3/8-24 | 5/8-11 | .500 | .25 | .07 |
| 7/16-14 | 11/16-11NS | .625 | .28 | .10 |
| 7/16-20 | 11/16-11NS | .625 | .28 | .10 |
| 1/2-13 | 13/16-16 | .688 | .28 | .10 |
| 1/2-20 | 13/16-16 | .688 | .28 | .10 |
| 9/16-12 | 7/8-14 | .812 | .32 | .10 |
| 9/16-18 | 7/8-14 | .812 | .32 | .10 |
| 5/8-11 | 1”-12 | .875 | .33 | .10 |
| 5/8-18 | 1”-12 | .875 | .33 | .10 |
| 3/4-10 | 1-1/4-12 | 1.125 | - | .10 |
| 3/4/16 | 1-1/4-12 | 1.125 | - | .10 |
| 3/4-10 | 1-1/4-12 | 1.250 | .49 | .10 |
| 3/4-16 | 1-1/4-12 | 1.250 | .49 | .10 |
| 7/8-9 | 1-3/8-12 | 1.250 | - | .10 |
| 7/8-14 | 1-3/8-12 | 1.250 | - | .10 |
| 7/8-9 | 1-3/8-12 | 1.375 | .49 | .10 |
| 7/8-14 | 1-3/8-12 | 1.375 | .49 | .10 |
| 1”-8 | 1-1/2-12 | 1.375 | - | .10 |
| 1”-12 | 1-1/2-12 | 1.375 | - | .10 |
| 1”-8 | 1-1/2-12 | 1.500 | .55 | .10 |
| 1”-12 | 1-1/2-12 | 1.500 | .55 | .10 |
| Extra heavy duty - inch | ||||
|---|---|---|---|---|
| Installation | ||||
| Internal thread | Tap Drill Size | C’Sink DIA. +.010 -.000 | Thread tap | |
| Size | Min. depth | |||
| 10-24 | .397 | .447 | 7/16-14 | .37 |
| 10-32 | .397 | .447 | 7/16-14 | .37 |
| 1/4-20 | .453 | .510 | 1/2-13 | .44 |
| 1/4/28 | .453 | .510 | 1/2-13 | .44 |
| 5/16-18 | .516 | .572 | 9/16-12 | .50 |
| 5/16-24 | .516 | .572 | 9/16-12 | .50 |
| 3/8-16 | .578 | .635 | 5/8-11 | .56 |
| 3/8-24 | .578 | .635 | 5/8-11 | .56 |
| 7/16-14 | .641 | .700 | 11/16-11NS | .68 |
| 7/16-20 | .641 | .700 | 11/16-11NS | .68 |
| 1/2-13 | .766 | .822 | 13/16-16 | .75 |
| 1/2-20 | .766 | .822 | 13/16-16 | .75 |
| 9/16-12 | .828 | .885 | 7/8-14 | .94 |
| 9/16-18 | .828 | .885 | 7/8-14 | .94 |
| 5/8-11 | .937 | 1.020 | 1”-12 | 1.00 |
| 5/8-18 | .937 | 1.020 | 1”-12 | 1.00 |
| 3/4-10 | 1.187 | 1.270 | 1-1/4-12 | 1.31 |
| 3/4/16 | 1.187 | 1.270 | 1-1/4-12 | 1.31 |
| 3/4-10 | 1.187 | 1.270 | 1-1/4-12 | 1.44 |
| 3/4-16 | 1.187 | 1.270 | 1-1/4-12 | 1.44 |
| 7/8-9 | 1.312 | 1.395 | 1-3/8-12 | 1.44 |
| 7/8-14 | 1.312 | 1.395 | 1-3/8-12 | 1.44 |
| 7/8-9 | 1.312 | 1.395 | 1-3/8-12 | 1.56 |
| 7/8-14 | 1.312 | 1.395 | 1-3/8-12 | 1.56 |
| 1”-8 | 1.437 | 1.520 | 1-1/2-12 | 1.56 |
| 1”-12 | 1.437 | 1.520 | 1-1/2-12 | 1.56 |
| 1”-8 | 1.437 | 1.520 | 1-1/2-12 | 1.68 |
| 1”-12 | 1.437 | 1.520 | 1-1/2-12 | 1.68 |

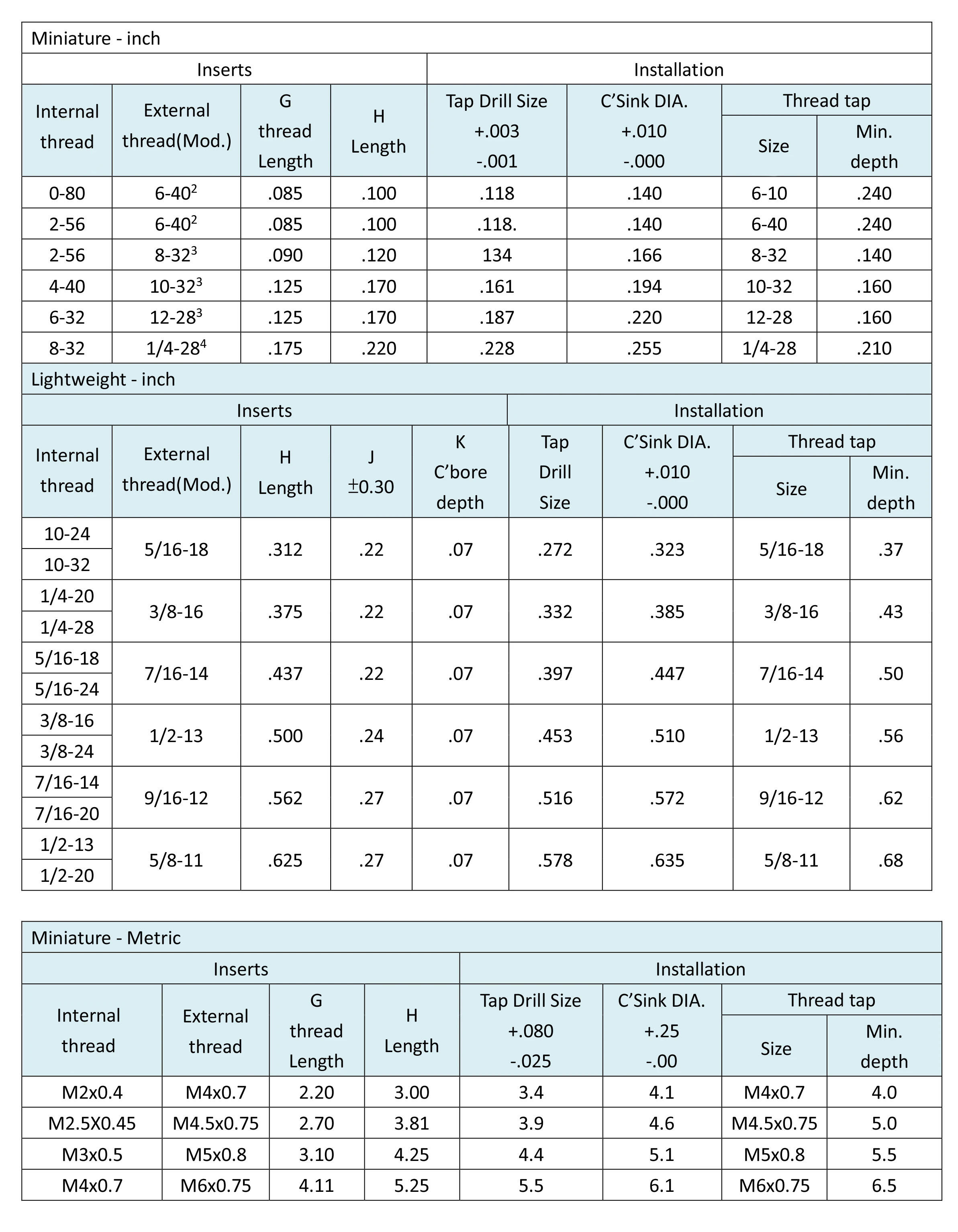

| Miniature - inch | |||
|---|---|---|---|
| Inserts | |||
| Internal thread | External thread(Mod.) | G thread Length | H Length |
| 0-80 | 6-40² | .085 | .100 |
| 2-56 | 6-40² | .085 | .100 |
| 2-56 | 8-32³ | .090 | .120 |
| 4-40 | 10-32³ | .125 | .170 |
| 6-32 | 12-28³ | .125 | .170 |
| 8-32 | 1/4-28⁴ | .175 | .220 |
| Miniature - inch | ||||
|---|---|---|---|---|
| Installation | ||||
| Internal thread | Tap Drill Size | C’Sink DIA. +.010 -.000 | Thread tap | |
| Size | Min. depth | |||
| 0-80 | .118 | .140 | 6-10 | .240 |
| 2-56 | .118. | .140 | 6-40 | .240 |
| 2-56 | 134 | .166 | 8-32 | .140 |
| 4-40 | .161 | .194 | 10-32 | .160 |
| 6-32 | .187 | .220 | 12-28 | .160 |
| 8-32 | .228 | .255 | 1/4-28 | .210 |
| Lightweight - inch | ||||
|---|---|---|---|---|
| Inserts | ||||
| Internal thread | External thread (Mod.) | H Length | J ±0.30 | K C’bore depth |
| 10-24 | 5/16-18 | .312 | .22 | .07 |
| 10-32 | 5/16-18 | .312 | .22 | .07 |
| 1/4-20 | 3/8-16 | .375 | .22 | .07 |
| 1/4-28 | 3/8-16 | .375 | .22 | .07 |
| 5/16-18 | 7/16-14 | .437 | .22 | .07 |
| 5/16-24 | 7/16-14 | .437 | .22 | .07 |
| 3/8-16 | 1/2-13 | .500 | .24 | .07 |
| 3/8-24 | 1/2-13 | .500 | .24 | .07 |
| 7/16-14 | 9/16-12 | .562 | .27 | .07 |
| 7/16-20 | 9/16-12 | .562 | .27 | .07 |
| 1/2-13 | 5/8-11 | .625 | .27 | .07 |
| 1/2-20 | 5/8-11 | .625 | .27 | .07 |
| Lightweight - inch | ||||
|---|---|---|---|---|
| Installation | ||||
| Internal thread | Tap Drill Size | C'Sink DIA. +.010 -.000 | Thread tap | |
| Size | Min. depth | |||
| 10-24 | .272 | .323 | 5/16-18 | .37 |
| 10-32 | .272 | .323 | 5/16-18 | .37 |
| 1/4-20 | .332 | .385 | 3/8-16 | .43 |
| 1/4-28 | .332 | .385 | 3/8-16 | .43 |
| 5/16-18 | .397 | .447 | 7/16-14 | .50 |
| 5/16-24 | .397 | .447 | 7/16-14 | .50 |
| 3/8-16 | .453 | .510 | 1/2-13 | .56 |
| 3/8-24 | .453 | .510 | 1/2-13 | .56 |
| 7/16-14 | .516 | .572 | 9/16-12 | .62 |
| 7/16-20 | .516 | .572 | 9/16-12 | .62 |
| 1/2-13 | .578 | .635 | 5/8-11 | .68 |
| 1/2-20 | .578 | .635 | 5/8-11 | .68 |
| Lightweight - Metric | ||||
|---|---|---|---|---|
| Inserts | ||||
| Internal thread | External thread (Mod.) | H Length | J ±.76 | K C’bore depth |
| M5x0.8 | 8.0 | 3.73 | 3.73 | 1.27 |
| M5x0.5 | 8.0 | 3.73 | 3.73 | 1.27 |
| M6x1.0 | 10.0 | 6.02 | 6.02 | 1.78 |
| M6x0.75 | 10.0 | 6.02 | 6.02 | 1.78 |
| M8x1.25 | 12.0 | 6.28 | 6.28 | 1.78 |
| M8x1.0 | 12.0 | 6.28 | 6.28 | 1.78 |
| M10x1.5 | 14.0 | 6.46 | 6.46 | 2.29 |
| M10x1.25 | 14.0 | 6.46 | 6.46 | 2.29 |
| M12x1.75 | 16.0 | 6.46 | 6.46 | 2.29 |
| M12x1.25 | 16.0 | 6.46 | 6.46 | 2.29 |
| Lightweight - Metric | ||||
|---|---|---|---|---|
| Installation | ||||
| Internal thread | Tap Drill Size² | C’Sink DIA. +.25 -.00 | Thread tap | |
| Size | Min. depth | |||
| M5x0.8 | 6.90 | 8.25 | M8x1.25 | 9.5 |
| M5x0.5 | 6.90 | 8.25 | M8x1.25 | 9.5 |
| M6x1.0 | 8.80 | 10.25 | M101.25 | 11.5 |
| M6x0.75 | 8.80 | 10.25 | M101.25 | 11.5 |
| M8x1.25 | 10.8 | 12.25 | M121.25 | 13.5 |
| M8x1.0 | 10.8 | 12.25 | M121.25 | 13.5 |
| M10x1.5 | 12.8 | 14.25 | M141.5 | 15.5 |
| M10x1.25 | 12.8 | 14.25 | M141.5 | 15.5 |
| M12x1.75 | 14.75 | 16.25 | M161.5 | 17.5 |
| M12x1.25 | 14.75 | 16.25 | M161.5 | 17.5 |
| Heavy duty - metric | ||||
|---|---|---|---|---|
| Inserts | ||||
| Internal thread | External thread | H Length | J ±.76 | K C’bore depth |
| M4x0.7 | M8x1.25 | 8.0 | 5.00 | 1.27 |
| M5x0.8 | M10x1.25 | 10.0 | 5.50 | 1.27 |
| M6x1.0 | M12x1.25 | 12.0 | 6.46 | 1.78 |
| M8x1.25 | M14x1.5 | 14.0 | 6.46 | 1.78 |
| M8x1.0 | M14x1.5 | 14.0 | 6.46 | 1.78 |
| M10x1.5 | M16x1.5 | 16.0 | 6.46 | 2.29 |
| M10x1.25 | M16x1.5 | 16.0 | 6.46 | 2.29 |
| M12x1.75 | M18x1.5 | 18.0 | 7.23 | 2.29 |
| M12x1.25 | M18x1.5 | 18.0 | 7.23 | 2.29 |
| M14x2.0 | M20x1.5 | 20.0 | 7.73 | 2.79 |
| M14x1.5 | M20x1.5 | 20.0 | 7.73 | 2.79 |
| M16x2.0 | M22x1.5 | 22.0 | 8.50 | 2.79 |
| M16x1.5 | M22x1.5 | 22.0 | 8.50 | 2.79 |
| M18x1.5 | M24x2.0 | 24.0 | 9.25 | 2.79 |
| M20x2.5 | M30x2.0 | 30.0 | 12.51 | 2.79 |
| M20x1.5 | M30x2.0 | 30.0 | 12.51 | 2.79 |
| M22x1.5 | M32x2.0 | 32.0 | 12.51 | 2.79 |
| M24x3.0 | M33x2.0 | 33.0 | 13.97 | 3.81 |
| M24x2.0 | M33x2.0 | 33.0 | 13.97 | 3.81 |
| Heavy duty - metric | ||||
|---|---|---|---|---|
| Installation | ||||
| Internal thread | Tap Drill Size² | C'Sink DIA. +.25 -.00 | Thread tap | |
| Size | Min. depth | |||
| M4x0.7 | 6.90 | 8.25 | M8x1.25 | 9.5 |
| M5x0.8 | 8.80 | 10.25 | M10x1.25 | 12.5 |
| M6x1.0 | 10.80 | 12.25 | M12x1.25 | 14.5 |
| M8x1.25 | 12.80 | 14.25 | M14x1.5 | 16.5 |
| M8x1.0 | 12.80 | 14.25 | M14x1.5 | 16.5 |
| M10x1.5 | 14.75 | 16.25 | M16x1.5 | 18.5 |
| M10x1.25 | 14.75 | 16.25 | M16x1.5 | 18.5 |
| M12x1.75 | 16.75 | 18.25 | M18x1.5 | 20.5 |
| M12x1.25 | 16.75 | 18.25 | M18x1.5 | 20.5 |
| M14x2.0 | 18.75 | 20.25 | M20x1.5 | 22.5 |
| M14x1.5 | 18.75 | 20.25 | M20x1.5 | 22.5 |
| M16x2.0 | 20.50 | 22.25 | M22x1.5 | 24.5 |
| M16x1.5 | 20.50 | 22.25 | M22x1.5 | 24.5 |
| M18x1.5 | 22.50 | 24.25 | M24x2.0 | 28.5 |
| M20x2.5 | 28.00 | 30.25 | M30x2.0 | 34.5 |
| M20x1.5 | 28.00 | 30.25 | M30x2.0 | 34.5 |
| M22x1.5 | 30.00 | 32.25 | M32x2.0 | 36.5 |
| M24x3.0 | 31.00 | 33.25 | M33x2.0 | 37.5 |
| M24x2.0 | 31.00 | 33.25 | M33x2.0 | 37.5 |
